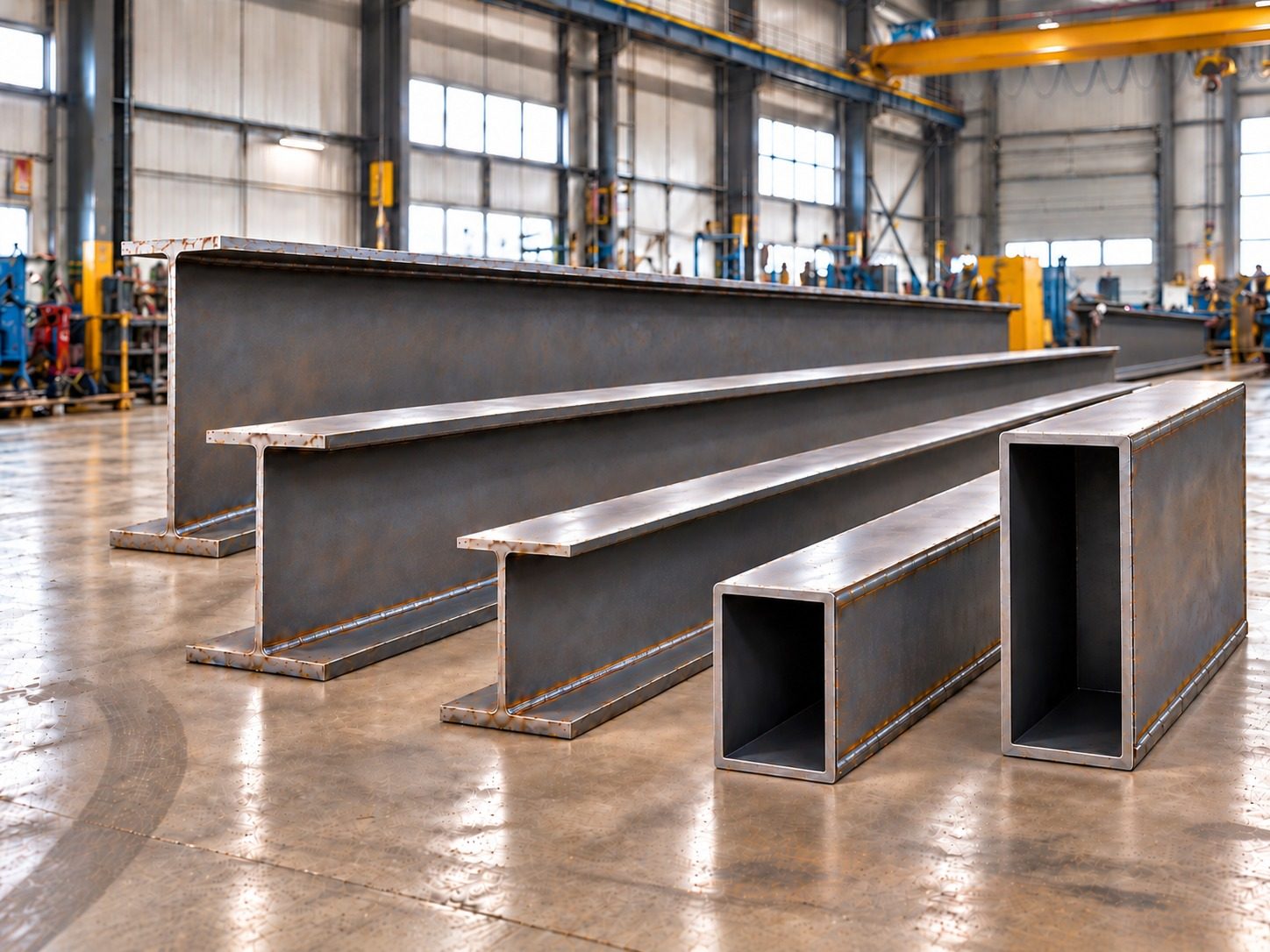

Welded beams & columns
Made-to-order WB and WC sections, welded on our automated submerged arc line in Sydney and delivered nationally.
We specialise in supplying welded beams and columns manufactured to each customer’s drawings and project specifications. Specify your required depth, flange width, plate thickness, steel grade and finished length — we manufacture the member you need, quickly, rather than limiting you to off-the-shelf stock lengths.
Flanges and webs are cut from certified plate, tacked up square and welded on our automated submerged arc (SAW) line, giving deep-penetration, full-length web-to-flange welds with consistent quality and minimal distortion. If you want end plates, holes, copes or splice plates, we add them before it goes on the truck.
| Beams | 700WB to 1200WB |
|---|---|
| Columns | 350WC to 500WC |
| Length | Up to 20 m in one piece, longer with splices |
| Plate | Made in your specified grade, mill certificates supplied |
| Welding | Submerged arc, web-to-flange fillets to AS/NZS 1554.1 |
| Standard | AS/NZS 3679.2 |
Need a non-standard depth or flange size? Send us your drawing for review.
Send us your beam or column schedule.
Share your drawings and member requirements and we'll come back quickly with a price, a lead time you can plan around, and freight. Tell us your required-on-site date and we'll work back from it.
Request a welded section quote.
Send your schedule, drawings and requirements directly to our team.
